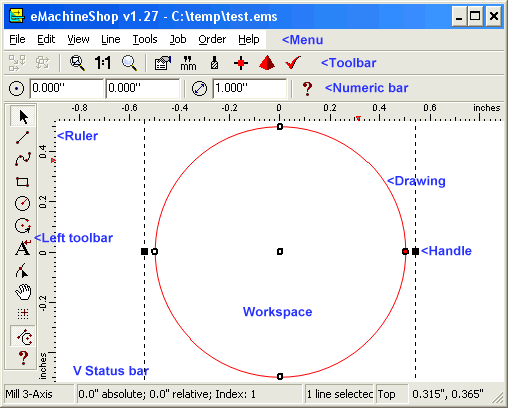

Screen Elements
The screen section names below will be used throughout the help system.
In the running application, point your mouse to any item to view a description.
The Numeric bars shows the numerical values for a selected line of your drawing. In the above example the circle
is shown to have a center located at (0,0) with a diameter of 1 inch.
The Status bar shows:
- the machine associated with the selected line
- specific information about the line
- quantity of lines selected
- which view is active
- coordinates of the mouse cursor
