Free Gear Design Software

The free eMachineShop CAD software includes a spur gear design wizard. Just Download, fill in the dimensions and select a material.

cnc

Spur gear is a simple plain gear.

gear

To use the gear design software:

  1. Download the eMachineShop CAD software.
  2. Choose menu File | New.
  3. Select the spur gear wizard.

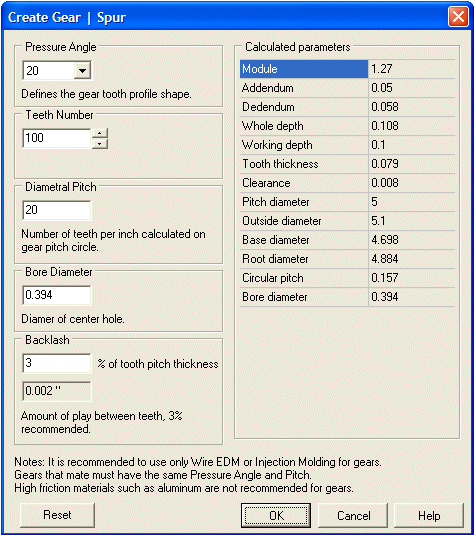

  4. Enter the desired parameters.
  5. Click OK.
  6. Add and needed additional features such as a hub or special holes.
  7. Choose Job | Material and select a material for your part.
  8. Choose Job | Price/Analyze to get feedback on the design.
  9. Choose Order | Place Order

spur_gear_screen
